主要技術參數Main technical parameters

機械規格

Mechanical specifications

單位  Unit

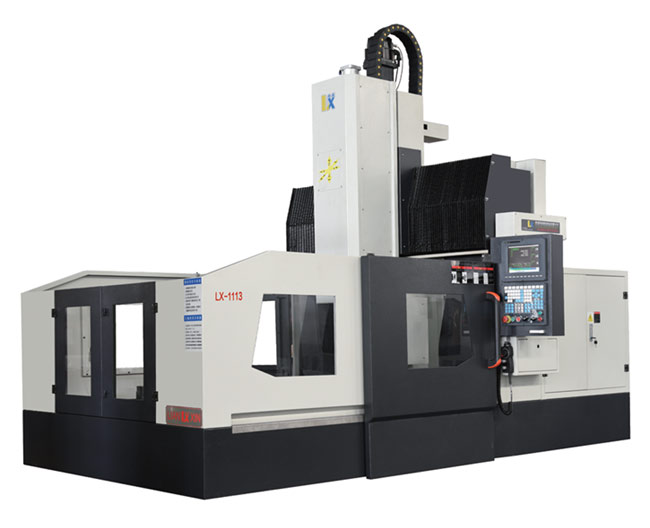

LX-1113

雕刻尺寸

Maximum engraving size

mm

≤1300x1100x500(選配700)

≤1300X1100X500(Select 700)

空行速度

Maximum blank speed

mm/mir

12000

伺服主軸電機

Servo spindle motor

kw

7.5皮帶8000轉/7.5直聯12000轉

7.5 belt 8000 rpm /7.5 direct 12000 rpm

變頻電主軸主軸轉速

Frequency electric spindle maximum spindle speed

r/min

≤15000

主軸適用刀柄Spindle handle

BT40

額定功耗Rated power

kw

18

驅動電機

Drive motor

日本/臺灣伺服電機選配

Japan / Taiwan servo motor selection

數控系統

CNC system

新代系統選配

Syntec system selection

工作臺負重

Table bearing weight

kg

2000

重量Weight

T

6.8

工作臺尺寸

Table size (length x width)

mm

1300x1100
